Description

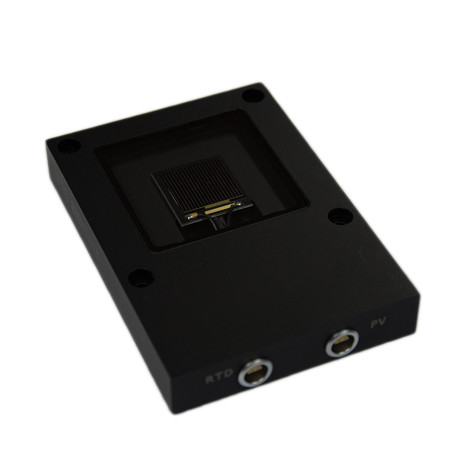

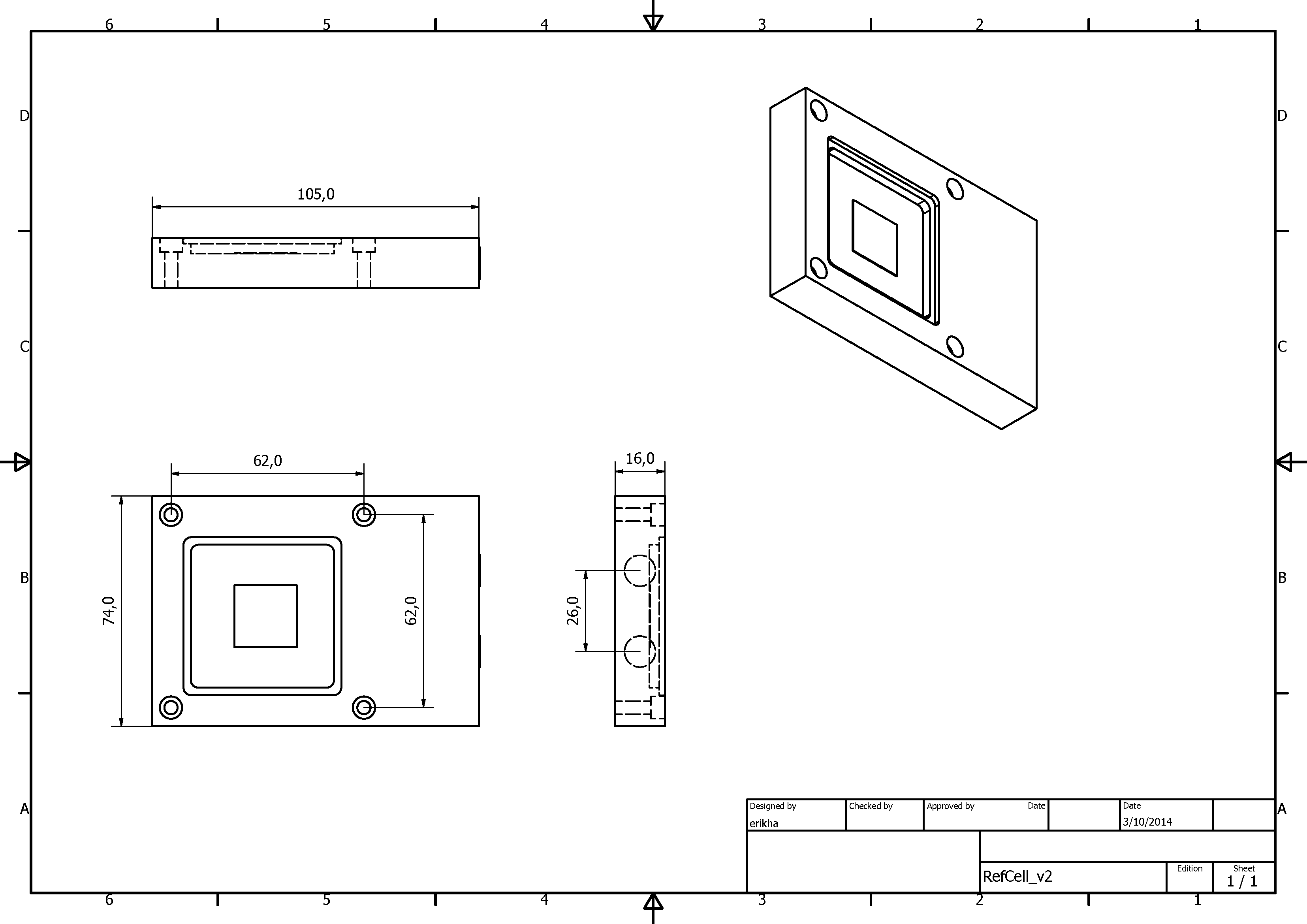

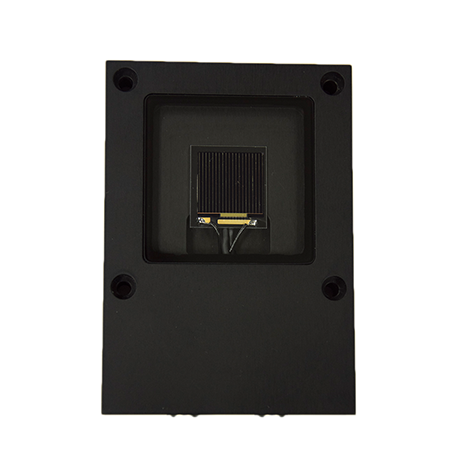

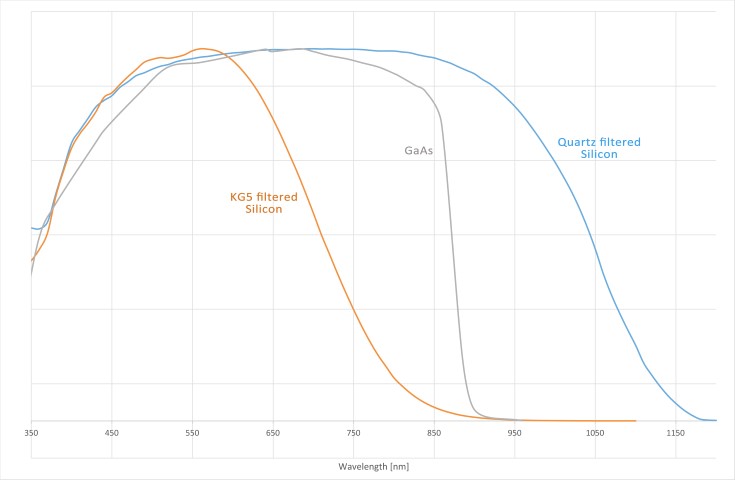

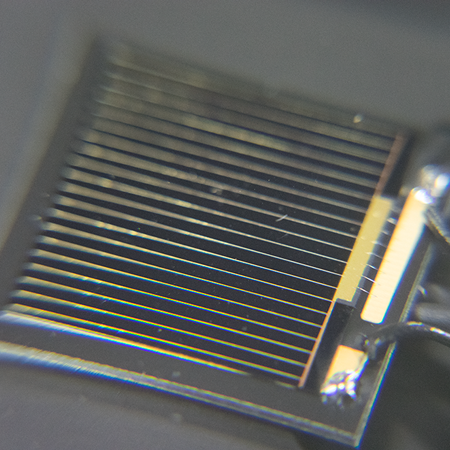

As one of the few suppliers ReRa offers true III/V GaAs Reference Cells. This high quality unfiltered GaAs Cell is mounted in a standard (IEC-60904-2) compliant housing, and provides a much better spectral match compared to KG5 filtered silicon reference cells. The GaAs cell is a high-quality precision sensor for the determination of solar simulator irradiance levels. ReRa Solutions uses the Radboud University Nijmegen PV Measurement Facility to calibrate the cells. The calibration is done against an NREL calibrated reference cell. This results in reference cells which are very well suited for indoor applications. All reference cells meet the standards of the World Photovoltaic Scale (WPVS) and the requirements of IEC 904-2.

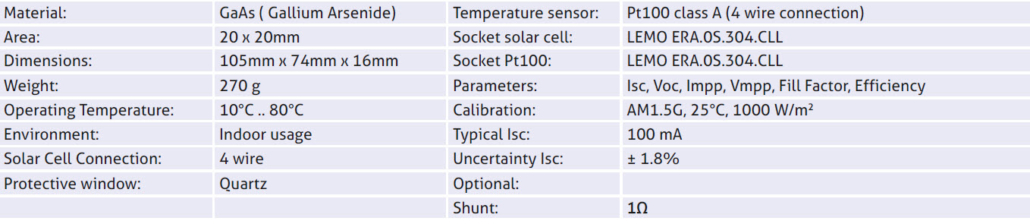

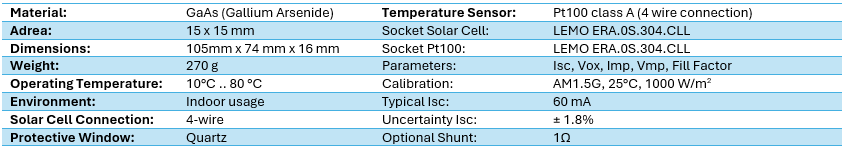

Key features GaAs Reference Cell:
- True III/V GaAs Reference Cell manufactured for ReRa
- Calibrated against primary references
- Mismatch corrected
- Irradiance and temperature readout
- Protective Quartz window
- Open or shunted version
- 2 PT100 LEMO sockets

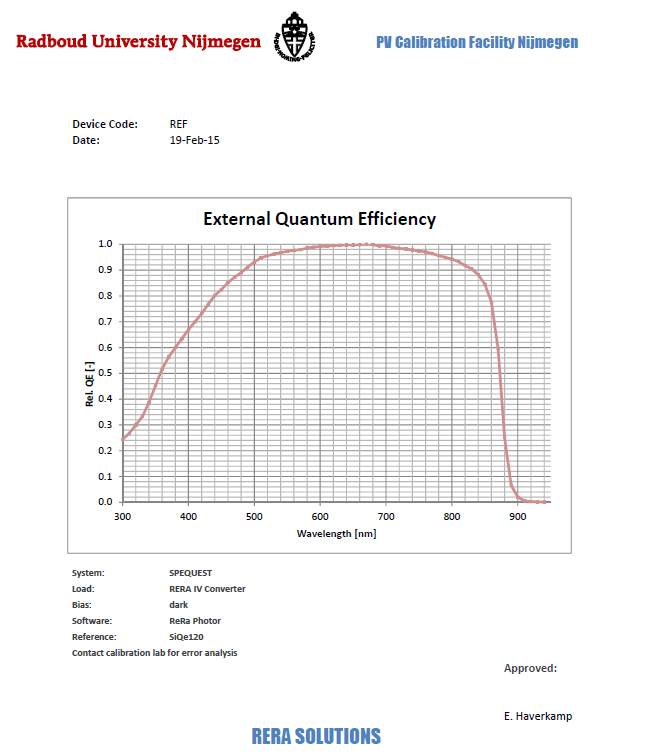

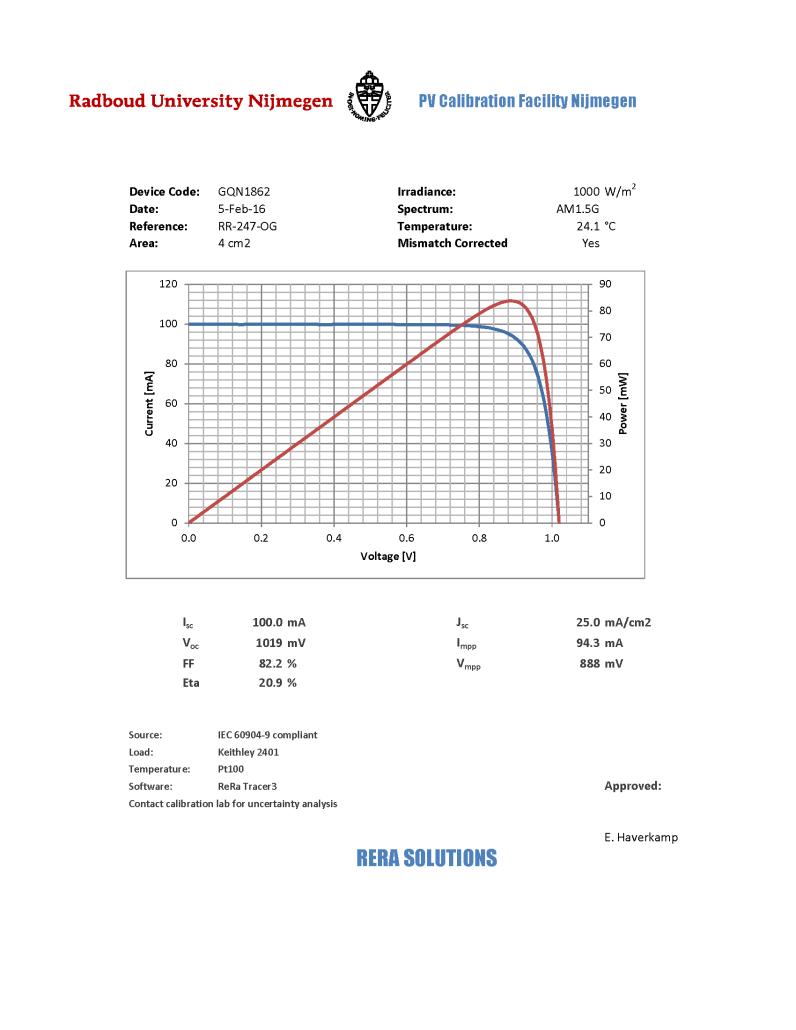

- Including full calibration report (IV-curve plot, Isc, Voc, Impp, Vmpp, Fill Factor and Efficiency)

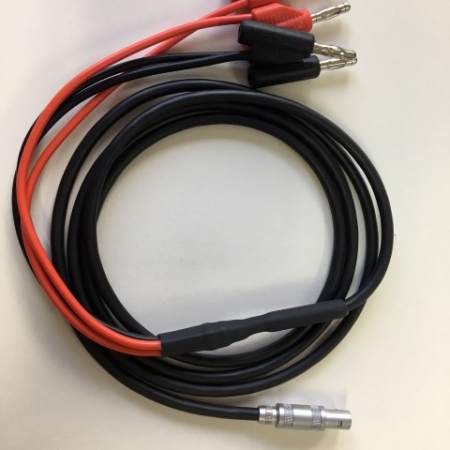

- Including 4-wire cable to measure cell
- Including 1 additional LEMO connector (FFA.0S.304.CLAC44) for temperature
- Including protective suitcase
Models:
- Shunted GaAs Reference Cell (RR-1004)
- Open GaAs Reference Cell (RR-1003)
